B9 2.0T DOWNPIPE FEATURES:

 - Excellent horsepower gains - with matching Stage 2 Tune
 - Cast sections ensure maximum flow and gorgeous fit and finish
 - True 76mm Throughout- Does not neck down to OE Sizing at catalyst discharge
 - Direct bolt-on fitment - no modification or bending of mount brackets required
 - 100% 304 stainless steel pipe construction - lifetime of worry free performance
 - Thick cast turbo flange - ensures long gasket life and no leaks
 - High flow 200 cell catalytic converter - full power with reduced pollution
 - High quality metal matrix catalyst flows more than cheaper ceramic matrix cats
 - Tuned resonator - keeps highway drone to a minimum
 - Fully lined extra tough flex section will never collapse internally
 - Complete Kit - includes all mounting hardware (nuts, bolts, clamps, gaskets)



UNLOCK STAGE 2 POWER

The IE B9 A4 & A5 Catted Downpipe is engineered to completely reduce turbocharger back pressure and increase turbo spool required for the calibrations of a stage 2 ECU tune. The combination of a performance downpipe and ECU tune together unlocks the full performance potential of your stock turbocharger and engine, delivering 97 horsepower over stock. Get ready to experience addictive power gains across the entire RPM range and an aggressive exhaust growl you are bound to love.

All IE exhaust systems are designed in-house using state of the art digital scanning for a perfect fit and manufactured from thick wall 304 stainless steel offering a lifetime of performance and fun.





SOUND TUNING

IE engineers elected to use a resonator in the B9 A4 & A5 exhaust. The result was a much better sounding exhaust overall. The factory cat back has a very unpleasant rasp when used with a downpipe which does not have a resonator. As IE engineers are true enthusiasts as well, it was very important that the exhaust also sounded great. Check out the video to hear stock vs. IE sound clips.





HIGH-FLOW CATALYTIC CONVERTER (CAT)

IE’s performance downpipe includes a high-flow 200 cell per inch metal matrix catalyst located as close to the turbo as possible. Metal matrix catalysts are higher performance because the matrix web is thinner, allowing higher flow in the same size. Our catalyst is also a very large diameter, allowing a large flow area and maximum power. By being placed close to the turbo, emissions and unwanted unpleasant smells are greatly reduced.



HIGH-FLOW CAST SECTIONS

Typical aftermarket downpipes use bends or cuts to form the shape of the downpipe; this allows the use of larger piping, but sacrifices flow and often times fitment. Using specialized 3D scanners and software, IE engineers can design odd shapes and sizes to maximize flow and conform into tight spaces without any sacrifices. To accomplish these shapes, sections of the dowpipe are cast manufactured from the digital models. The result is an incredibly high-quality performance unit with a perfect fit and beautiful finish.



BOLT-ON INSTALLATION

The IE downpipe replaces over 6 feet of restrictive factory exhaust tubing, all the way back to the OE “Cat-Back” rear section. Sturdy fabricated mounts and precise engineering result in a rattle free and long last replacement exhaust system. 3D scanning systems were employed to ensure perfect placement both in pre and post-production phases.



Installation should be completed by a professional and preferably on an auto lift.

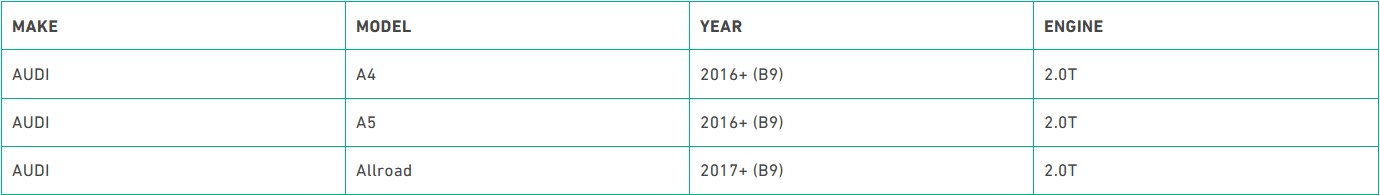

VEHICLE FITMENT GUIDE:
